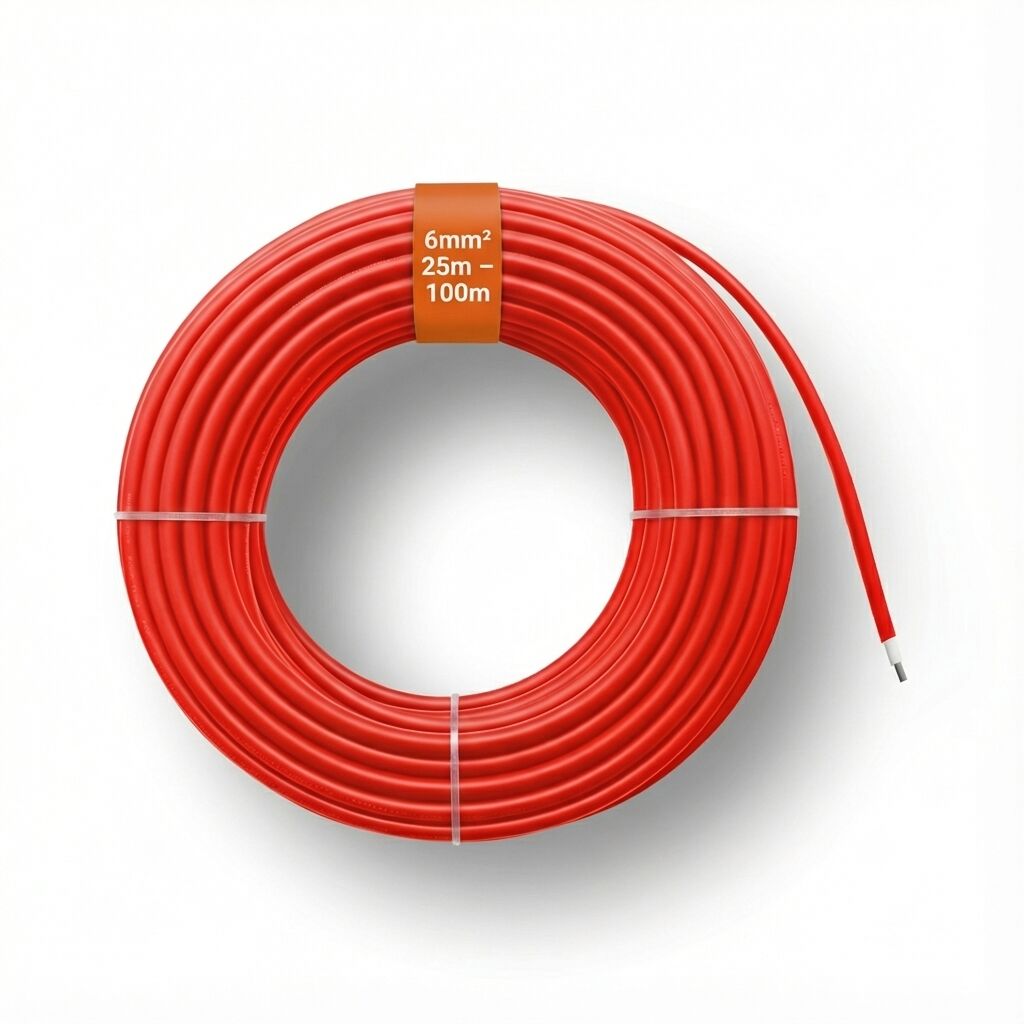

Solar cable red H1Z2Z2-K 6mm² – 100m

Professional H1Z2Z2-K solar cable for the safe installation of your photovoltaic system. This high-quality solar cable is specially designed for the demanding requirements of the solar industry and meets all current quality and safety standards. Thanks to its double insulation and premium materials, the cable guarantees reliable power transmission for many years.

Key Features:

• High-quality 6mm² solar cable for maximum power transmission
• Double insulation for maximum safety
• UV-resistant and extremely weather-resistant
• Temperature range from -40 ° C to + 90 ° C
• Approved for direct current voltage up to 1.500V DC
• EN 50618 certified
• Suitable for underground installation and halogen-free

Your benefits

• Maximum power transfer through high-quality materials
• Particularly durable thanks to UV and weather resistance
• Maximum safety through double insulation
• Flexible use in all weather conditions
• Robust and reliable for permanent outdoor use

Technical data:

• Conductor: Tinned copper strand according to DIN EN 60228 Class 5
• Rated voltage: 1.500V DC
• Insulation: Cross-linked polymer, halogen-free
• Outer casing: UV-resistant special polymer
• Temperature resistance: -40°C to +90°C (max. 120°C conductor temperature)
• Minimum bending radius: 4x outer diameter
• Certifications: EN 50618, RoHS, REACH, CPR compliant
• Flame-retardant according to DIN EN 60332-1-2
