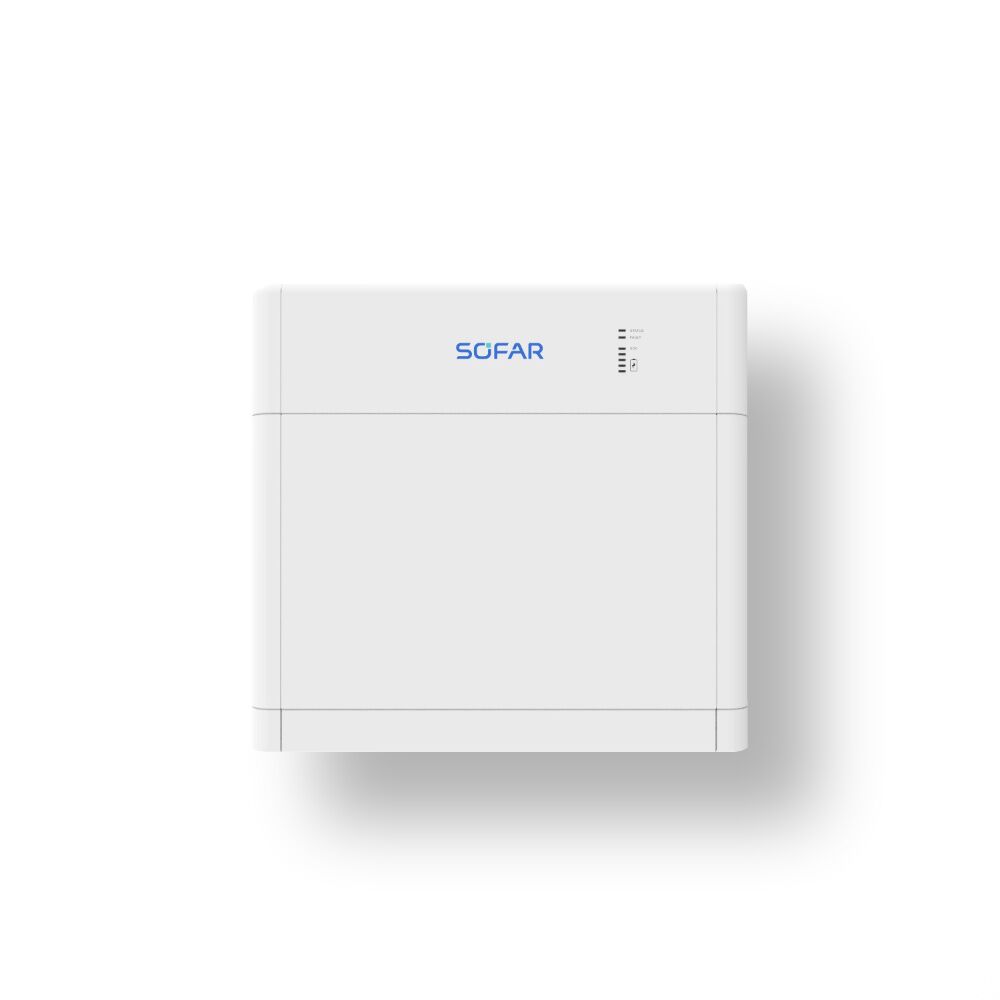

Sofar BTS 5,12/4,6kWh battery storage system

Sofar BTS 5,12/4,6kWh battery storage system (BTS 5k-BDU + BTS 5K)

With impressive capacity and reliable performance, this intelligent battery storage system from Sofar Solar offers the ideal solution for an independent energy supply.

• Battery storage with emergency power (backup) function
• Modular and integrated design for easy transport and installation
• Flexible expansion of battery capacity (Ah)
• User-friendly one-button operation
• Maximum battery performance through battery module optimization
• Extremely low battery consumption in standby mode
• Energy storage specifically for ME / HYD 5…20KTL-3PH inverters

Included in the package:

► ⌈ (1 unit) Sofar BTS 5,12/4,6kWh battery storage (BTS 5k-BDU + BTS 5K) ⌋

Technical data:

• Number of battery modules: 1
• Total battery energy (kWh): 5.12
• Usable energy (kWh): 4.75
• Rated power: 2.5
• Nominal voltage (V): 400
• Voltage range at full load (V): 350 – 425
• Nominal charging/discharging current (A): 7
• Protection class: IP65
• Ambient temperature range: -10°C – 50°C
• Permissible range of relative humidity: 5 – 95%
• Maximum operating altitude: 4000 m
• Weight (kg): 59
• Dimensions (mm): 708*170*680
• Installation: Floor mounting
• Cooling: Natural
• Display: LED indicators
• Communication: CAN

BTS 5K-BDU (Battery Distributor)

• Model: BTS 5K-BDU
• Max. charging/discharging current (A): 35
• Dimensions (mm): 708 x 170 x 200
• Weight (kg): 7.5

BTS 5K (battery module)
