Dyness DL5.0C battery storage

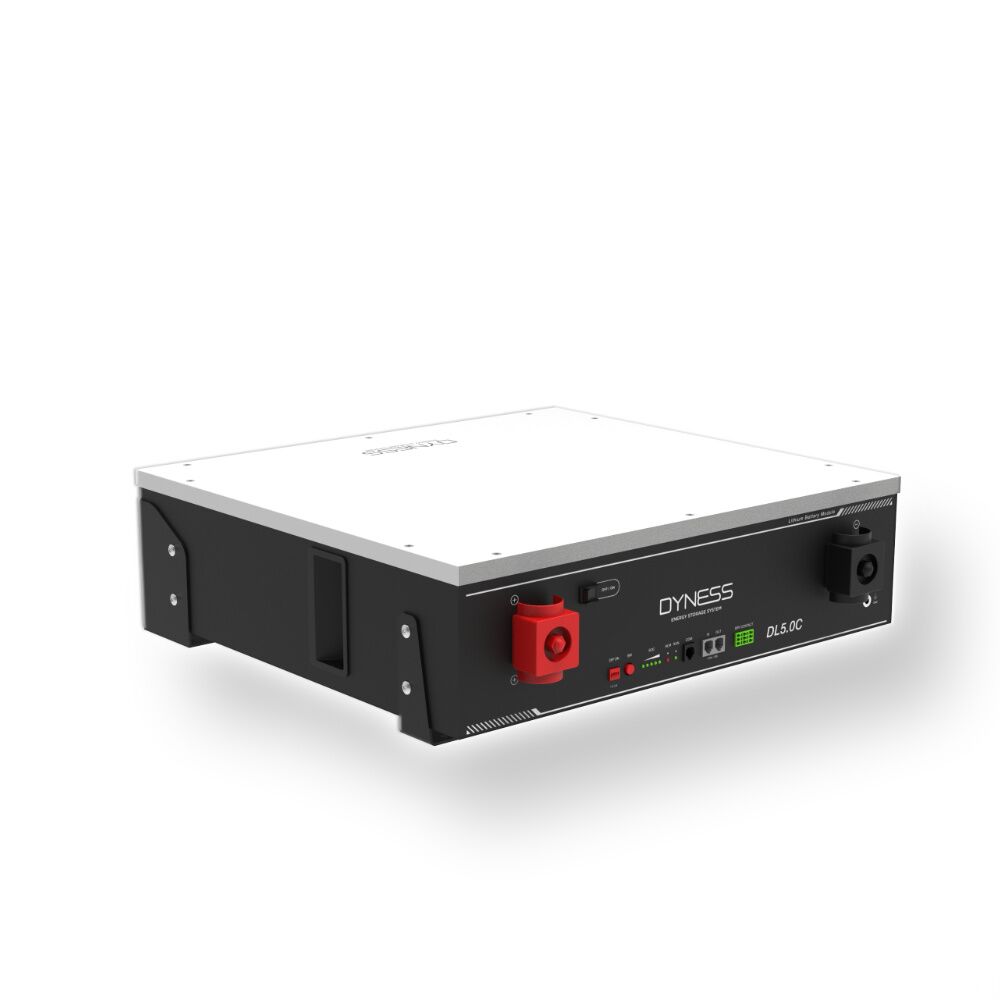

Dyness DL5.0C 5,12 kWh 48V Lithium Battery Storage System

The latest generation of lithium battery modules from Dyness offers higher energy storage capacity in a smaller space. The Dyness DL5.0C 48V module is an excellent replacement for old, heavy lead-acid batteries.

Each Dyness module is equipped with an independent battery management system (BMS), making the battery more efficient and safer. The Dyness DL5.0C battery consists of 5,12 kWh modules that are stackable, allowing the storage capacity to be expanded according to the requirements of our photovoltaic system. It can be wall-mounted without the need for a frame, resulting in significant savings.

Dyness is compatible with most leading inverters on the market from the following manufacturers (a complete list of all compatible inverters can be found via this link): Compatibility_List_Dyness.pdf

Victron / Goodwe / SAJ / Voltronic / Sofar Solar / Steca / Turbo (deye) / Solis / Lux Power / Growatt / GMDE

Included in the package:

► ⌈ (1 piece) Dyness DL5.0C 5,12 kWh 48V Lithium Battery ⌋

Technical data:

• Battery type: LiFePO4
• Total battery energy (kWh): 5.12
• Usable energy (kWh): 4.75-57.6
• Nominal capacity (Ah): 100
• Nominal voltage (V): 51.2
• Recommended charging/discharging current (A): 50
• Maximum continuous charging current (A): 75
• Maximum continuous discharge current (A): 100
• Peak charging/discharging current (A): 110 (15 s)
• Weight (kg): 54
• Dimensions (mm): 558*545*150

Downloads

Data sheet
Manual
Declaration of Conformity CE
Test report UN38.3
