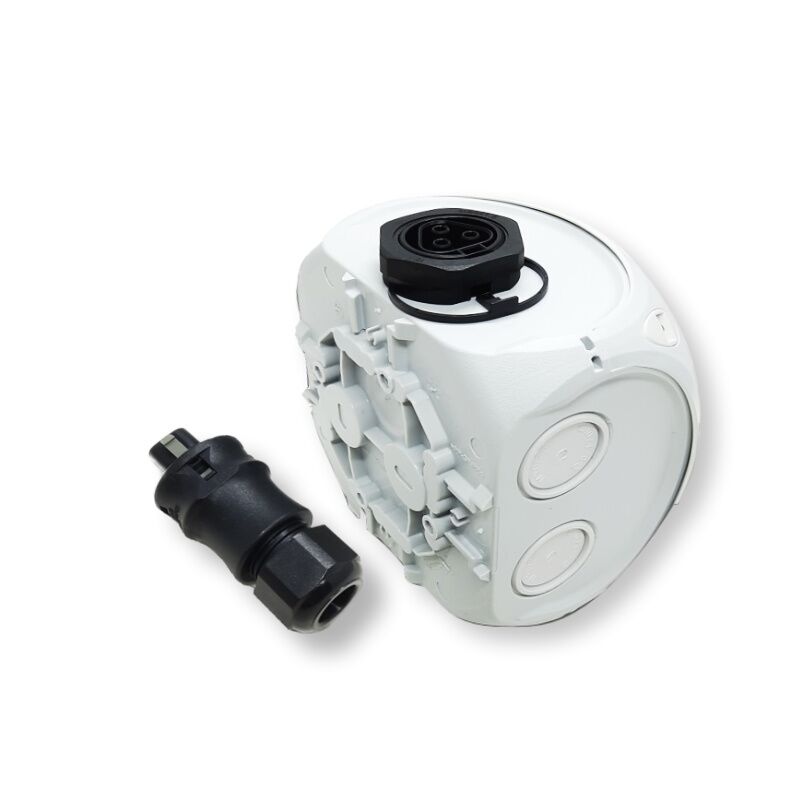

Power inlet socket for damp locations with Wieland appliance connection, energy socket + Wieland plug

AP moisture-proof socket with WIELAND device connection

Energy socket for standard-compliant plug-and-play installation (also: pluggable PV systems, mini-PV, balcony PV, balcony power plant, guerrilla PV, plug and play PV and many more), high protection class IP66 for outdoor use.

Connecting a mini-PV system requires the use of an RST® system socket or a device connection. This is due to the following key differences and advantages of the RST® system socket or device connection compared to a standard Schuko socket:

+ Touch-protected contacts on the plug part – Schuko contacts are exposed. Should the
The module's safety shutdown is not working; this is due to the pins of the
Schuko plug voltage (danger of electric shock).
+ No accidental use of the socket by consumers (including multiple sockets),
which can lead to the problems mentioned above.
+ The locking mechanism of the RST® system socket prevents unintentional
Interruption of the electrical connection (and thus idle operation of the PV module). Complete with:
+ High-quality surface-mounted housing IP66 for outdoor use + Sealable without accessories + With elastic sealing membranes, removable, sealing range 9,0-17,0 mm
For a standards-compliant installation, the following must be observed in particular:
The requirements of DIN VDE V 0100-551-1 (VDE V 0100-551-1) must be met. This includes, among other things, requirements for cable dimensioning, connection type, and
Includes protective devices.
Replacing a standard household socket (protective contact socket) with a special energy socket,
However, even a permanent installation must be carried out by a qualified electrician.
