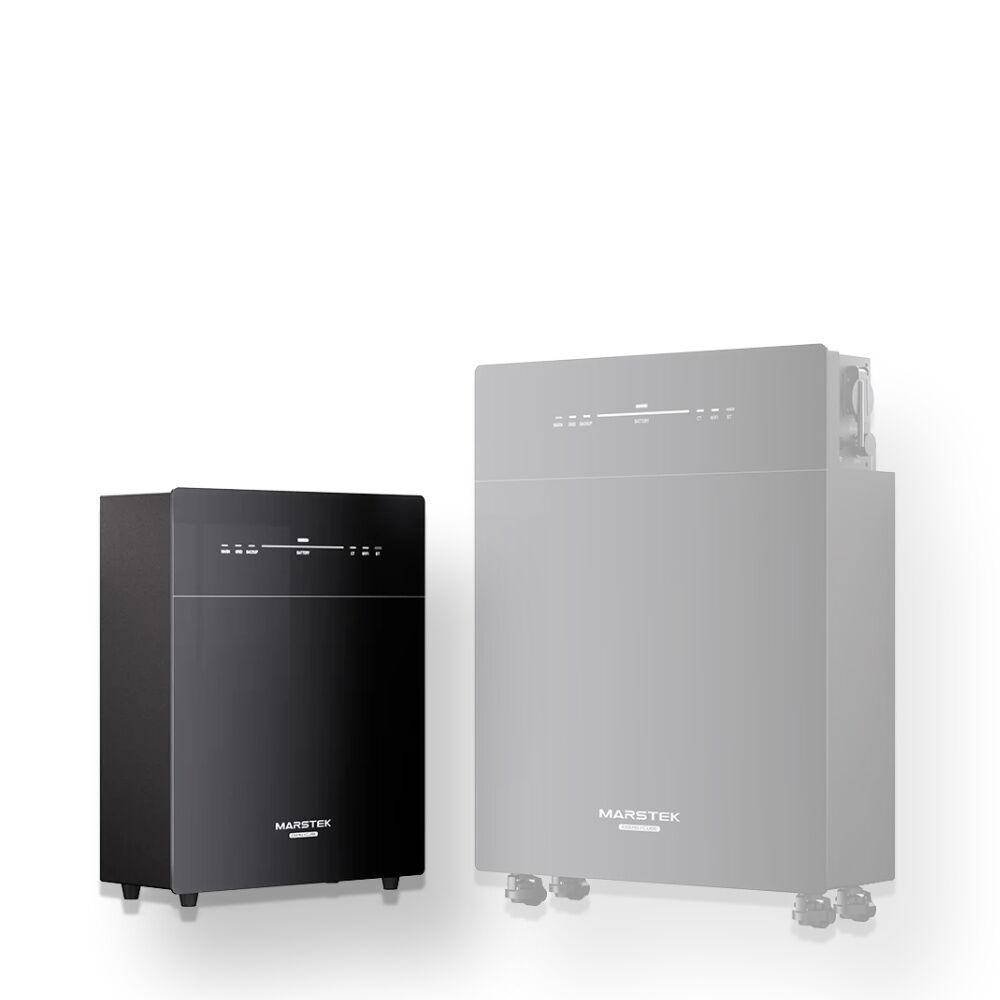

Marstek Venus C solar storage system 2560Wh with integrated inverter (All-in-One)

Included in the package:

► ⌈ (1 piece) Marstek Venus C solar storage system 2560Wh with integrated inverter (All-in-One) ⌋

Technical data:

• Model: Venus C/E
• Dimensions: 450*550*200mm
• Weight: 45±0.5kg
• Operating temperature: -20℃~+55℃ (Storage: -30℃~+85℃)
• Protection class: IP65
• Overvoltage/voltage resistance: DC II/AC III
• Cooling strategy: Natural convection
• Maximum operating altitude: 2000m
• Relative humidity: 0-95%
• On-grid connection standard: VDE 4105/0124,TOR R25,NF EN50549-1,UNE217001/217002,NTS 631,CE10-21,PETREE,PN-EN 50549-1/-2,G98,AS4777.2
• Regulierung/EMC: IEC62040,IEC62477,IEC/EN 61000-6-1/-2/-3/-4,IEC/EN 61000-3-2/-3,EN 300 328,EN 301 489-1/-17,EN 50665,CB 62619

Drums:

• Battery type: LiFePO4
• Total battery energy: 2560Wh
• Charging cycle: >6000+, 25°
• Nominal voltage: 51.2V (16S)
• Max. battery AC efficiency: >93.5%

AC Input/Output (On Grid):

• Rated power input/output: 2.5kW/800W
• Nominal mains voltage: 230V
• Mains voltage range: 187V~253V
• Nominal mains frequency: 50Hz
• Nominal output current: 10.9A
• Performance factor: >0.99 (Default) 0.8 leading…0.8 lagging (Adjustable)
• THD: <3%

Backup (Off Grid)

• Nominal output power: 2.5kW
• Maximum apparent output power: 3.5 kVA, 10 A
• Nominal mains voltage: 230V
• Nominal output current: 10.9A
• Nominal output voltage Frequency: 50Hz
• THDu(Linear): <3%

Further data:

• AC mains connection: Three-wire household plug (Euro 16A)
• Backup connection: Three-hole socket (blue Euro socket)
• Display: LED
• Supported communication interfaces: WIFI & RS485 (Waterproof aviation connector)

Downloads

Venus-C Storage User Manual
Unit certificate Marstek
Certificate for NA protection Marstek
